128
maximum controlled axes
WMX3 Soft-Motion Control System
One PC + WMX3 real-time motion control software = a simple, flexible, high-performance software controller
WMX3 is available as an evaluation version with technical support and example programs. We help customers build semiconductor and other automation control systems.
WMX3 Soft-Motion Control System
Motion · I/O · Fieldbus · Simulation256
parallel real-time channels
0.125ms
minimum communication cycle
10,000+
machines deployed
Serving manufacturers worldwide
and the equipment suppliers that support them.
Software Motion Control
What is Soft-Motion?
Software motion control uses the computing performance of a multi-core PC. WMX3 runs on Windows without an NC board or dedicated controller and is suitable for high-speed multi-axis synchronous control of manufacturing equipment and robots.

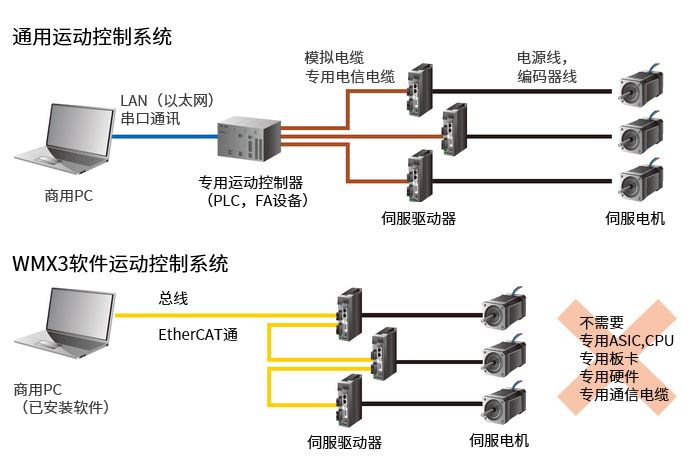

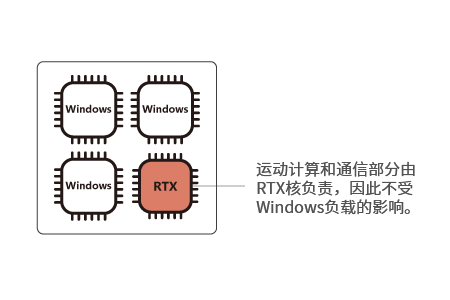

Can Windows provide real-time control?
By installing RTX and assigning a dedicated CPU core and memory to software motion control, a Windows PC can provide fast, stable real-time control without interference from ordinary Windows processes.
Products
Product Center
Softwin provides the WMX3 software motion-control system, industrial PCs, slice I/O modules and custom I/O modules.
01
CONTROL SOFTWARE

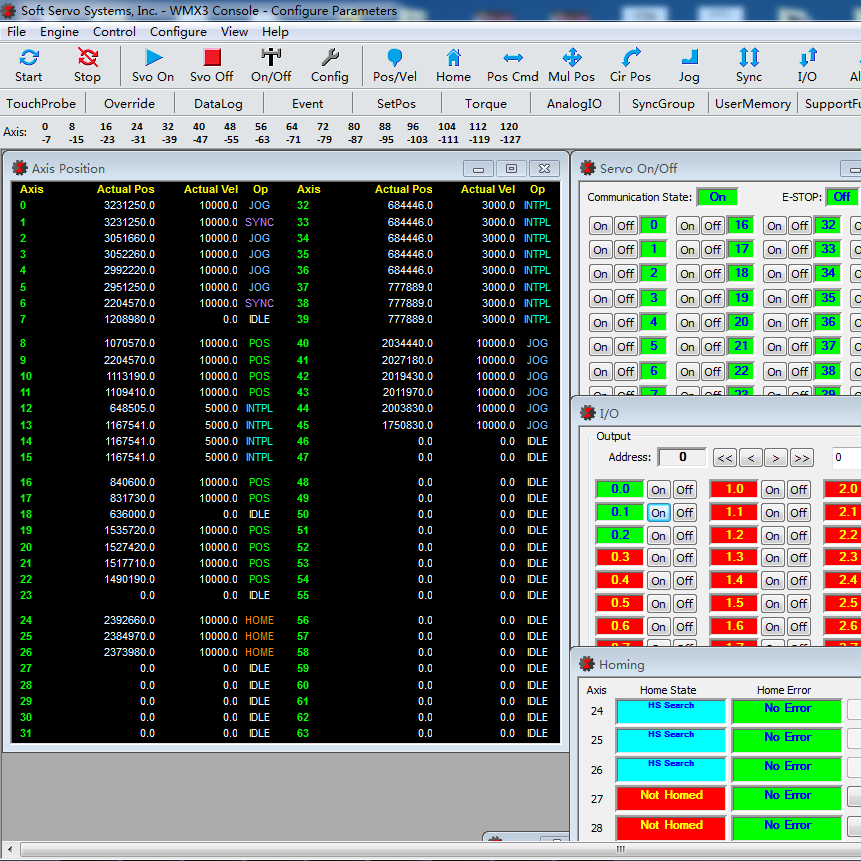

WMX3 Soft-Motion Control System
Install WMX3 real-time motion-control software on one standard PC to integrate control of automation equipment, robots and I/O logic.
- Up to 128 axes
- 256 real-time channels
- 0.125–8 ms communication cycle
02
CONTROL HARDWARE

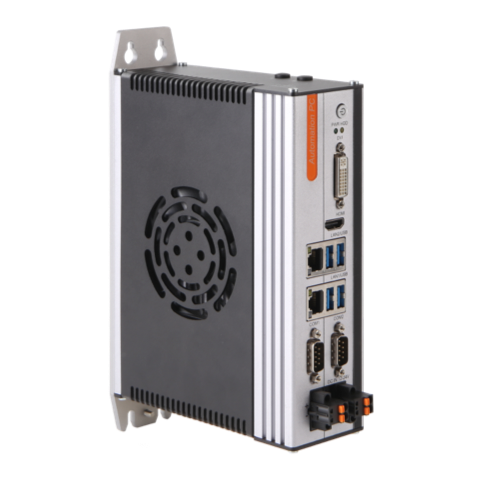

Industrial PCs
Industrial PCs selected for installing and running the WMX3 real-time motion-control system.
- Windows 7 / Windows 10 LTSC
- ATOM 2 GHz dual-core or above
- 4 GB memory or above
03
ETHERCAT I/O
Slice I/O Modules
EC6-series EtherCAT I/O modules support high-speed data acquisition, simpler field wiring and reliable system configuration.
- High-speed EtherCAT
- Digital and analogue I/O
- DIN-rail and pluggable terminals
04
ETHERCAT I/O

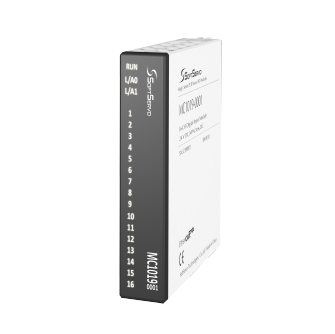

Custom I/O Modules
Custom EtherCAT I/O modules and signal-distribution hardware for equipment-specific interfaces and wiring.
- Equipment-specific interfaces
- Compact module design
- Configuration support
Industry Applications
Industry Applications
WMX3 applications cover high-speed gantry control, five-axis dispensing and path control, robotics and standalone automation, semiconductor equipment, and mobile / 3C electronics manufacturing.

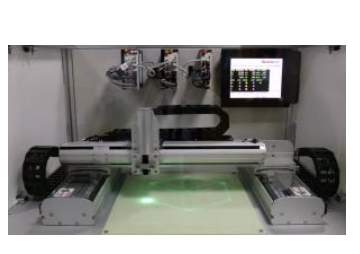

High-speed gantry control
Dual-drive gantry synchronization for wide-span, high-speed and heavy-load equipment.
Five-axis dispensing / path control
Multi-axis interpolation for dispensing, coating and other complex-path processes.

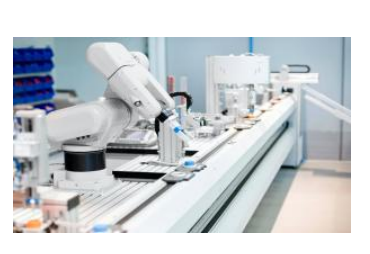

Robotics and standalone automation
Integrated motion and I/O control for robots, loading systems and standalone automation equipment.
Industry Applications / 04

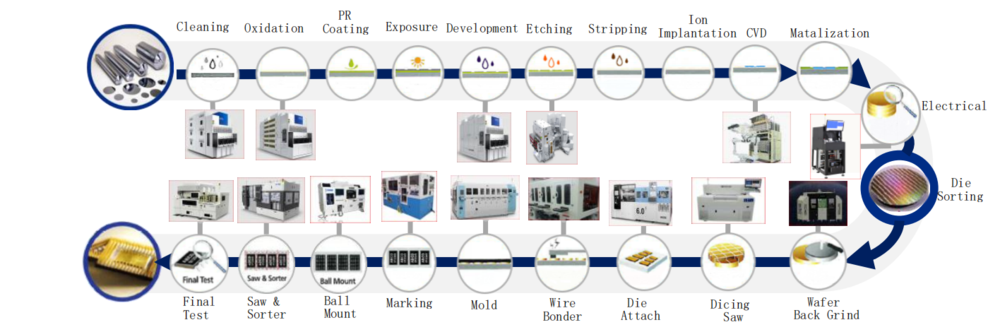

Semiconductor equipment
WMX3 is used by semiconductor manufacturers in China, Japan and Korea for wafer cleaning, PR coating, etching, chemical deposition, EDS test, wafer grinding, die attach, wire bonding and inspection equipment.
Representative equipment
- Wafer cleaning
- PR coating
- Etching
- Chemical deposition
- EDS test
- Wafer grinding
- Die attach
- Wire bonding
- Inspection
Industry Applications / 05

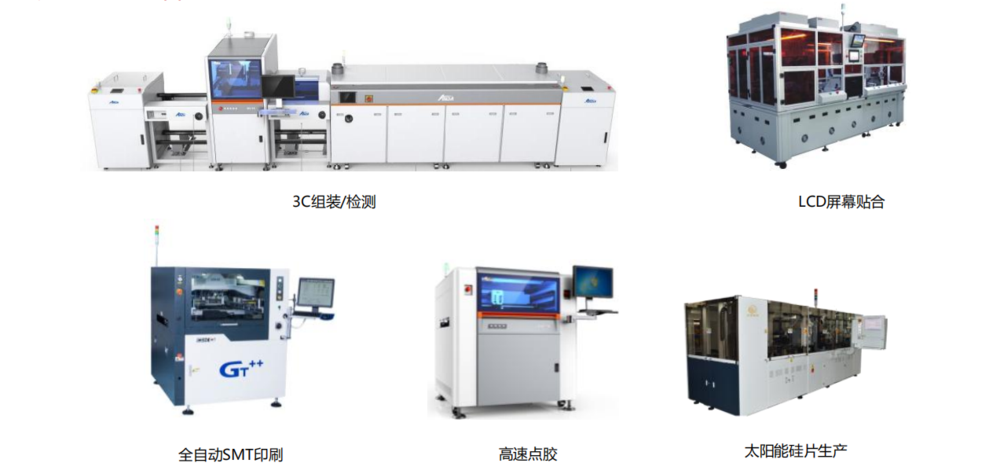

3C electronics
WMX3 is used in mobile, LCD / LED display, SMT, dispensing and solar-wafer equipment for assembly, inspection, lamination and process-motion control.
Representative equipment
- 3C assembly / inspection
- LCD panel lamination
- Automatic SMT printing
- High-speed dispensing
- Solar-wafer production
Engineering Support
Service & Support
An evaluation version, technical support and example programs help your team validate WMX3 on the real machine before deployment.
- 01
Initial deployment
Guidance from product installation through the first running project.
- 02
PC selection
Configuration and performance testing for the target cycle and axis count.
- 03
Slave connection
Support for servo, I/O and other fieldbus device setup.
- 04
Application development
API selection, sample code and real-time algorithm guidance.
- 05
Version upgrades
A clear path to current software releases and capabilities.
Company
Company Profile
Shenzhen Softwin Technology Co., Ltd. develops software motion-control systems for automation and intelligent manufacturing.
Since 2006, Softwin has conducted research into software motion control, using general-purpose PCs and advanced real-time software in place of dedicated control hardware to support faster iteration of machine functions.
Softwin works with equipment manufacturers to combine control technology with their process knowledge, from standard APIs to customer-developed real-time algorithms and intellectual property.
Engineering ecosystem
Evaluate WMX3
WMX3 Evaluation Version
A three-month WMX3 evaluation version is available. Contact Softwin for technical support and example programs.
